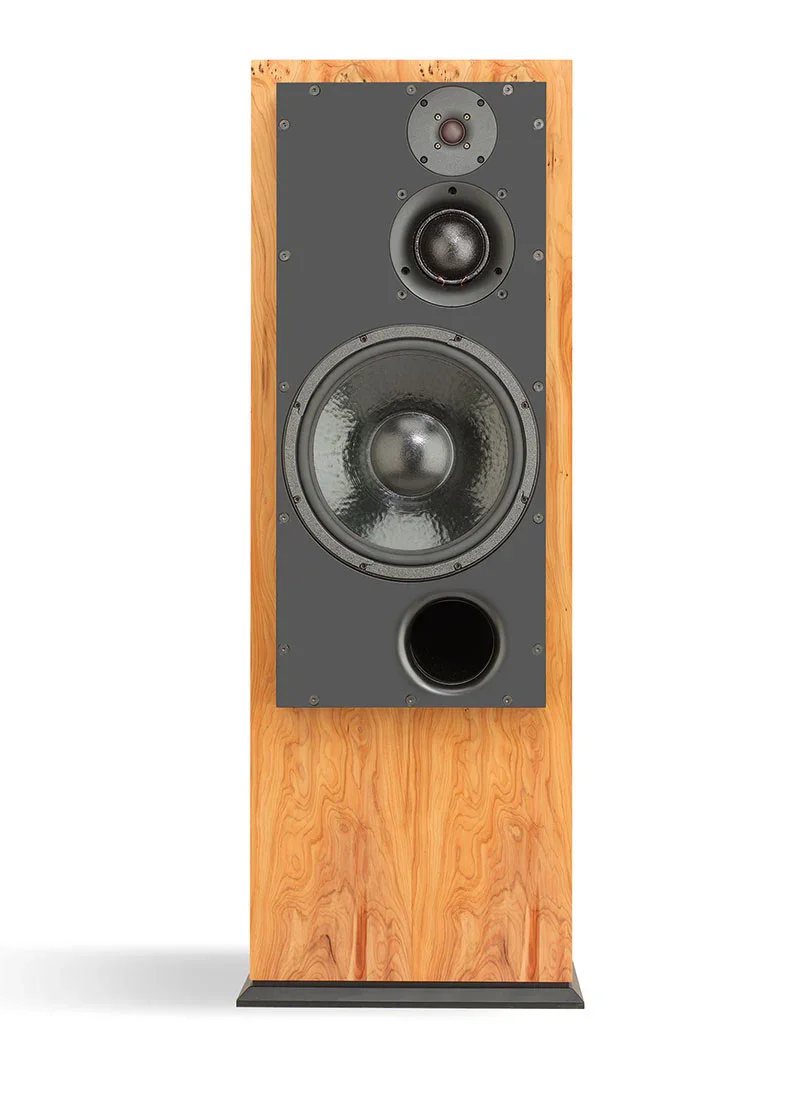

ATC - SCM100A (Pair)
Active Tower Series
Description:
- Also available in passive version (SCM100P)
- ATC SM75-150 S Soft Dome Mid driver
- Latest 314mm SL Spec Bass driver
- Massive ATC motor assembly
- Wide, even dispersion for pin-point imaging
- 350 watt Class AB tri-amp pack (active version)
- Active filters and overload protection (active version)
- 6 year warranty
Standard Veneers – Cherry, Walnut, Oak & Black Ash.
Standard Paints – Satin Black, Satin White
Specifications:
Drivers: HF 25mm Neodymium, Mid 75mm ATC Soft Dome, LF 314mm SL
Amplitude Linearity (±2dB): 65Hz–17kHz
Frequency Response (±6dB): 32Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 115dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Female XLR
Filters: Active – 4th Order Linkwitz-Riley, Passive – 2nd Order linkwitz-Riley
Amplifier Output: 200w LF, 100w Mid, 50w HF (active version)
Accessories Inc. (per pair): 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts, 2 x IEC Power Cables.
Cabinet Dimensions (HxWxD): 1070 x 397 x 560mm / 42.13 x 15.63 x 22.05″
Weight: 68kg
