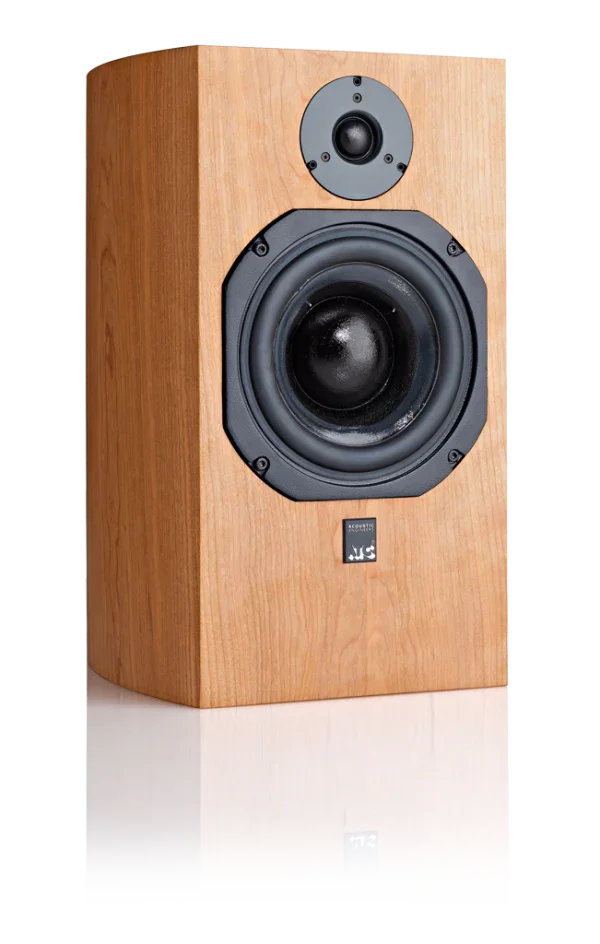

ATC - SCM19 (Pair)

ATC - SCM19 (Pair)

Description:

Overview

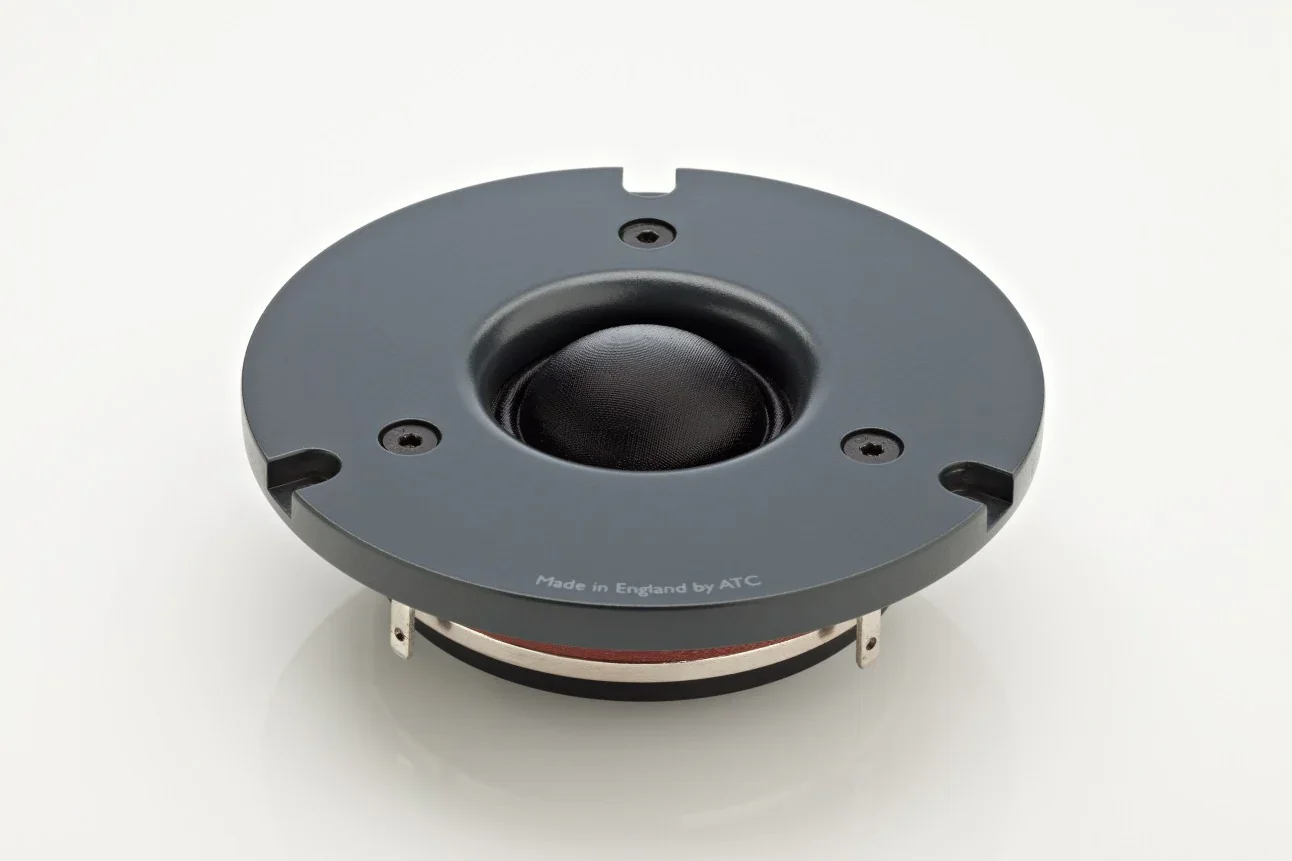

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

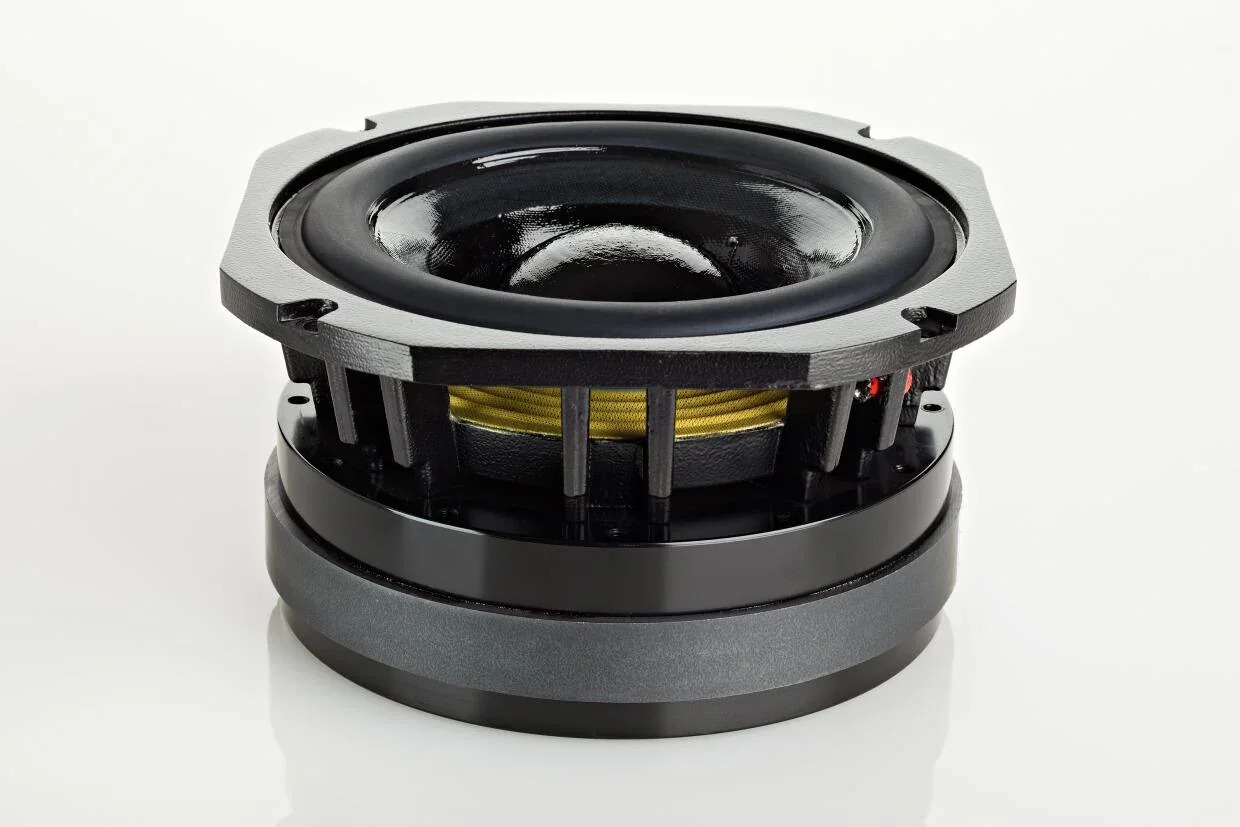

• “SL” spec bass driver with 75mm integral soft dome.
• 9kg optimised short-coil/long gap motor assembly.
• In-house, hand-wound precision flat wire coil.
• Flat impedance curve allowing easy load for amplifiers.
• Veneered Finish Options – Cherry, Black Ash.
• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

Specifications:

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL
Matched Response: ±0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 438 x 265 x 300mm / 17.24 x 10.43 x 11.81″ (grill adds 34mm to depth)
Weight: 17.8kg

(Sold As A Pair)
