ATC - SCM40 (Pair)

ATC - SCM40 (Pair)

Description:

Overview

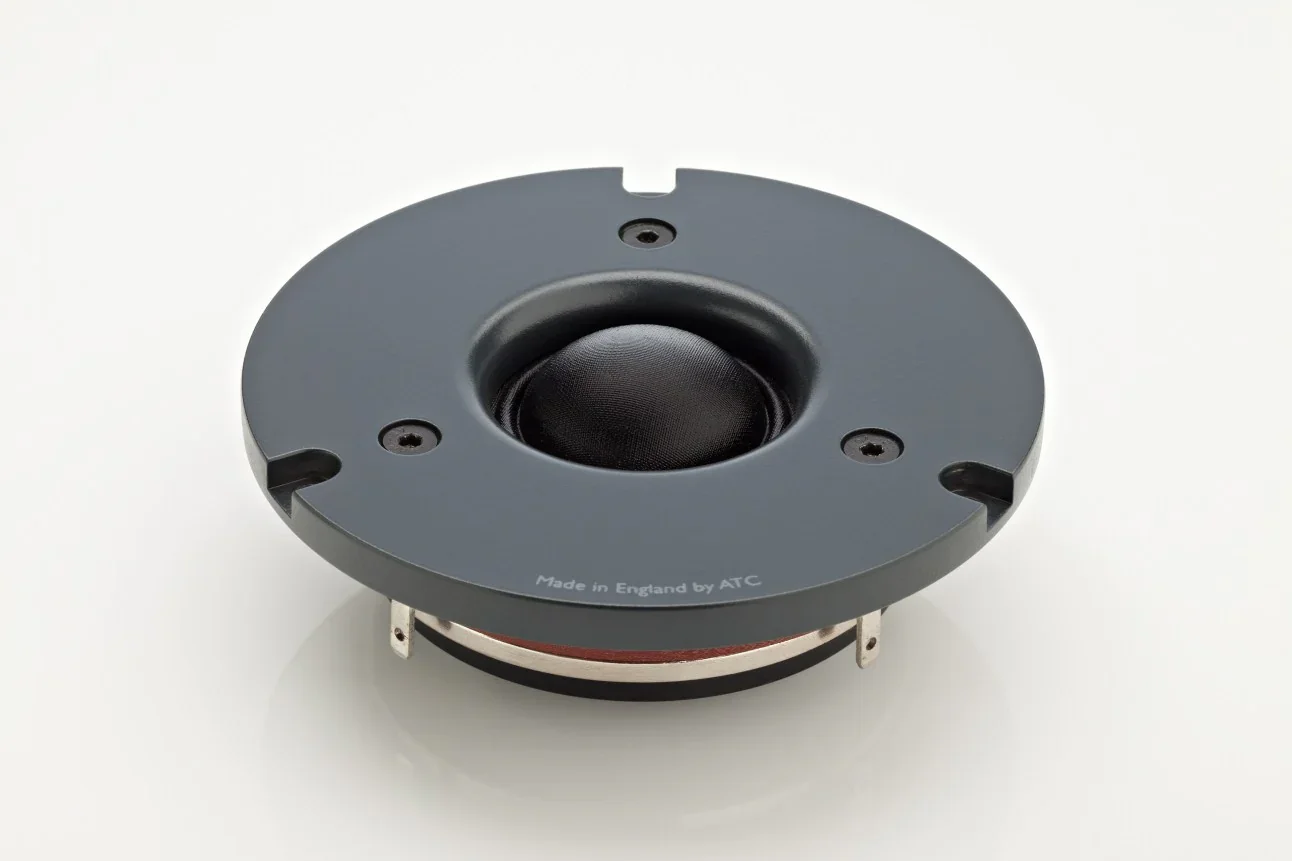

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

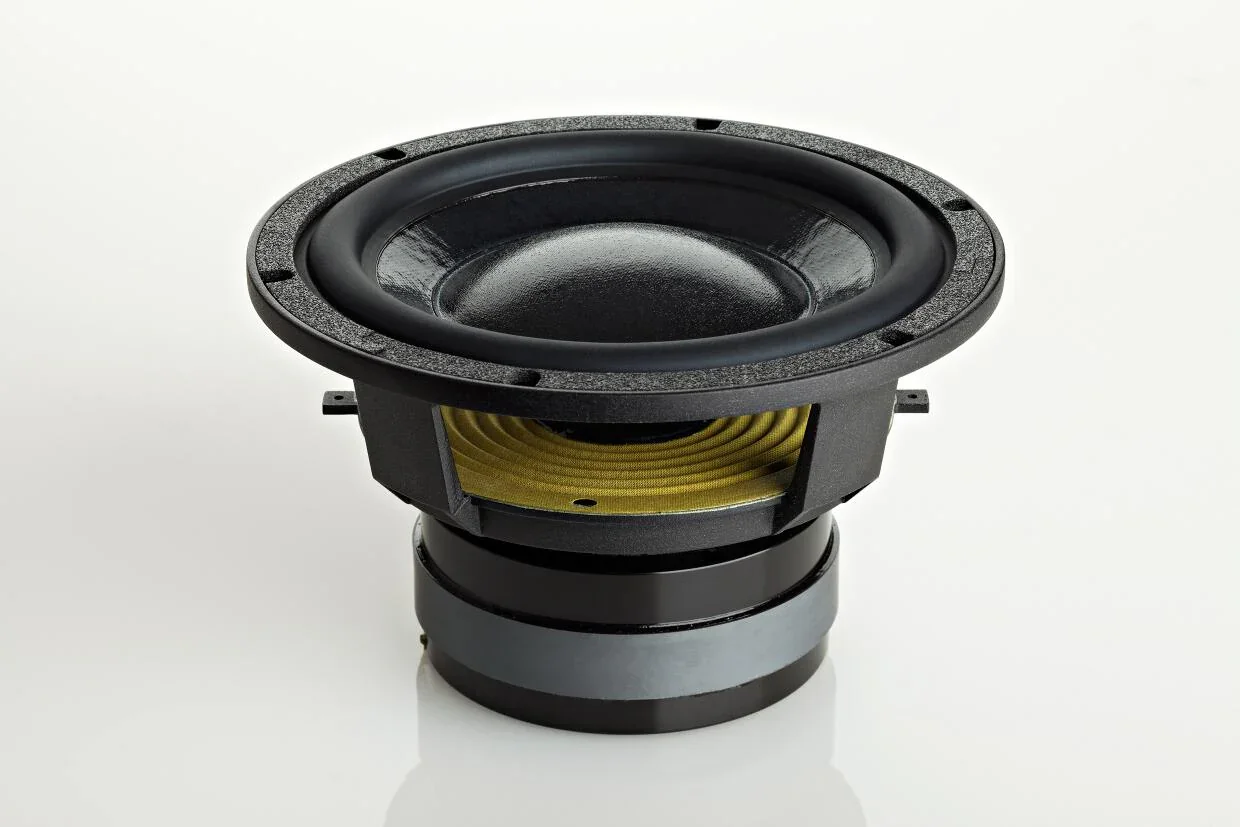

• ATC 164mm bass driver.
• Massive optimised motor assembly.

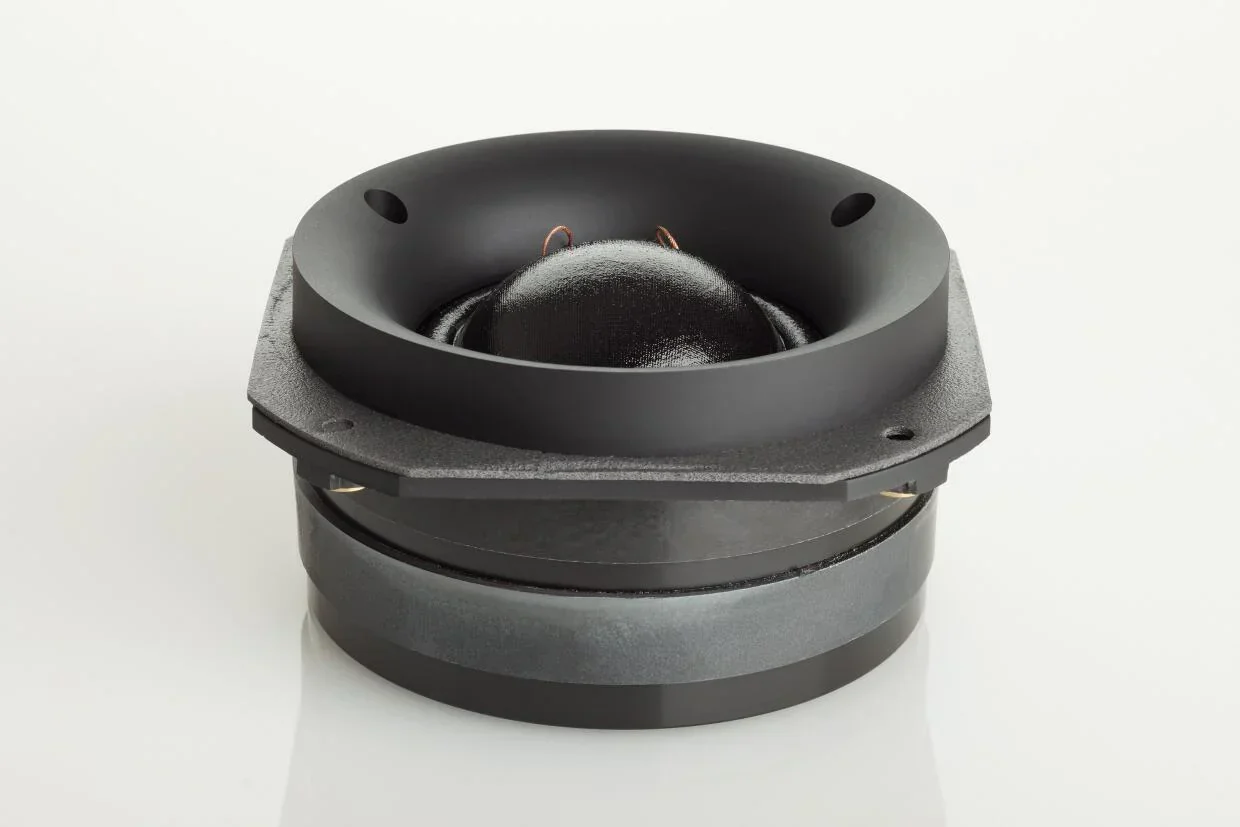

• ATC Soft Dome mid-range driver.
• Flat impedance curve allowing easy load for amplifiers.

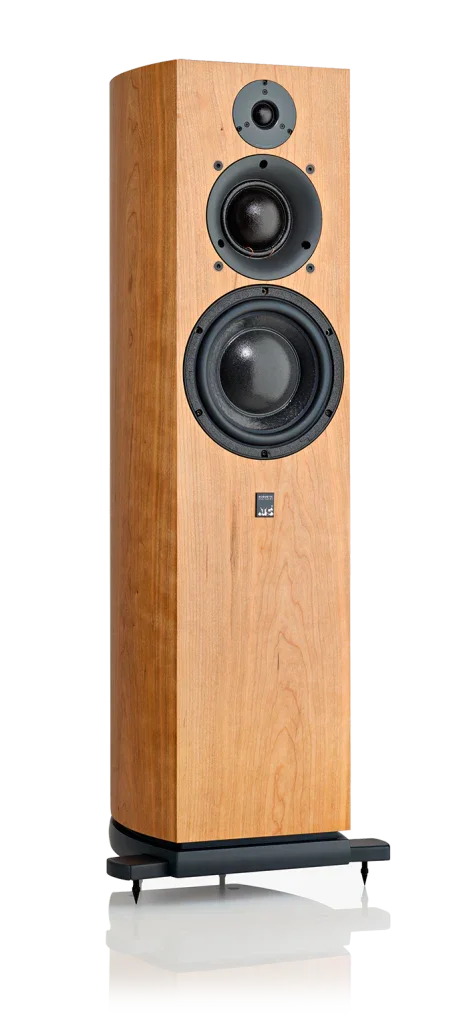

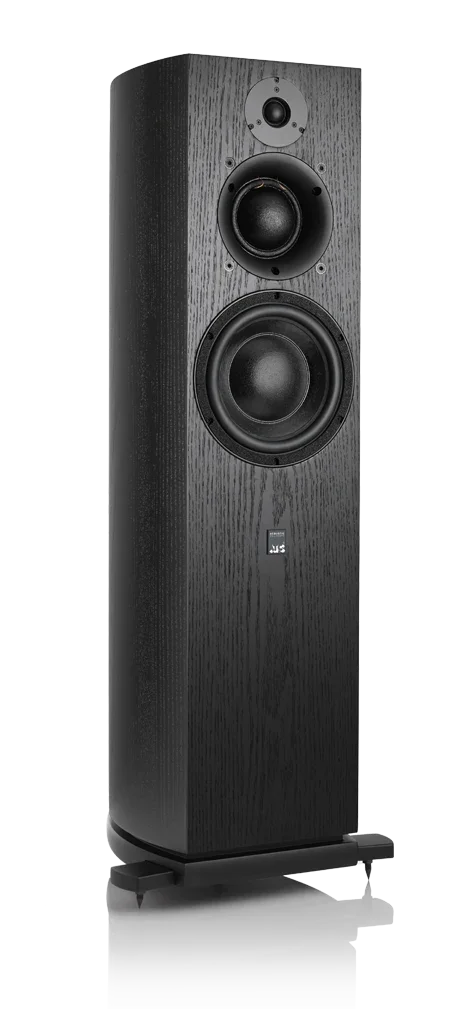

• Veneered Finish Options – Cherry, Black Ash.
• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

Specifications:

Drivers: HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 112dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/4mm Plugs, tri-wire
Dimensions (HxWxD): 980 x 370 x 305mm / 38.58 x 14.56 x 12.01″ (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 31kg
Spikes: 4 per cabinet, M8 x 1.25mm

(Sold As A Pair)
