Storm - ISR Fusion 20

Storm - ISR Fusion 20

Immersive Sound Receiver

Based on the award-winning ISP Elite MK3 platform, the Immersive Sound Receiver Fusion 20 is a 20-channels processor integrating 16 channels of the latest Edge amplification technology from Danish based ICE Power, exhibiting extremely low noise and distortion levels with 150W (8ohm) per channel, and up to 500W (8ohm) when bridged.

This unique receiver in the market has the DSP power to decode all the latest immersive formats (Auro-3D, Dolby Atmos, DTS:X Pro, and IMAX Enhanced), and enable post-processing to optimize any speaker to any room straight out of the box. It includes the highest precision implementation of Dirac Live Active Room Treatment for easy and accurate room calibration, supports additionally up to 20 PEQs per channel and can drive up to four-way active crossovers and any number of subwoofers.

Based on the ISP Elite MK3 design, it delivers the same audio performance thanks to StormAudio proprietary analog/digital hybrid volume adjustment that maximizes the dynamic range for a more accurate, detailed, and dynamic reproduction of your movie soundtrack or your music playlists, perfectly rendered by the ICE Power amplification.

The ISR Fusion 20 has a fixed architecture, but the upgradeability of the HDMI board remains possible whenever new upgrades are released. It currently supports HDMI2.1a/HDCP2.3 up to 8K/4K120 with HDR10+, HLG and Dolby Vision as well as ARC/eARC.

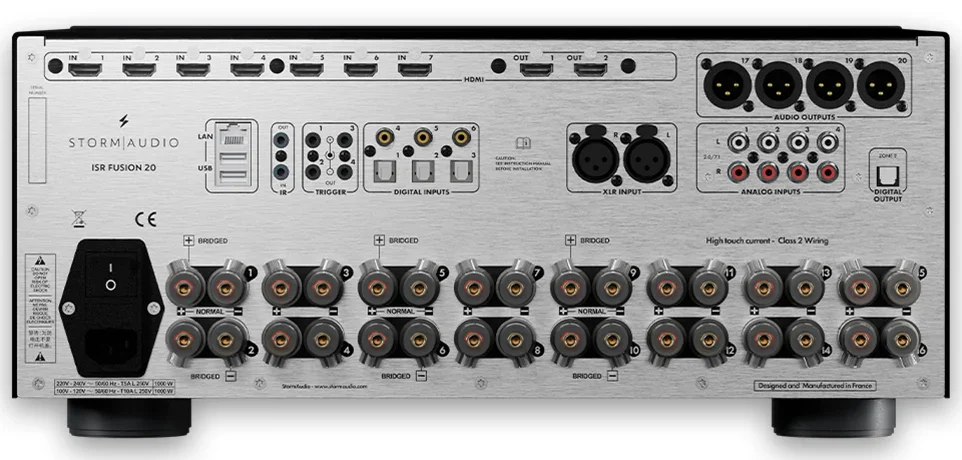

HDMI IN / OUT	7 IN / 2 OUT (ARC/eARC) HDMI2.1a / HDCP2.3 8K / 4K120 40 Gbps on all ports HDR10+, Dolby Vision, HLG
AUDIO OUTPUTS	16ch, analog amplified (5-way binding posts) 4ch analog (XLR) 1x Optical Toslink (Zone2 Stereo downmix)
AUDIO INPUTS	4x RCA analog (7.1 or stereo) 1x XLR analog (stereo) 3x Coaxial SPDIF 3x Optical Toslink
DECODING	20 decoding / upmixing channels Dolby Atmos, Auro-3D DTS:X Pro, IMAX Enhanced StormXT ambiance expander All legacy codecs up to 192 kHz
PROCESSING	Up to 20ch Multi-theater & multi-room Standard and Expert Bass Management Multi-way speakers / Multisubwoofer
ROOM CORRECTION	Dirac Live with Room Correction, Bass Control and Active Room Treatment modules included REW plugin
STREAMING	Roon Ready
AMPLIFIER SPECIFICATIONS	16 channels (SE, Single Ended) Up to 10 channels (SE) + 3 channels (BTL, Bridge Tied Load) SE : 150W (8ohm) / 300W (4ohm) BTL : 500W (8ohm) / 500W (4ohm) Continous power up to 2000W Peak power up to 2500W (CEA-490-A)
