The Story

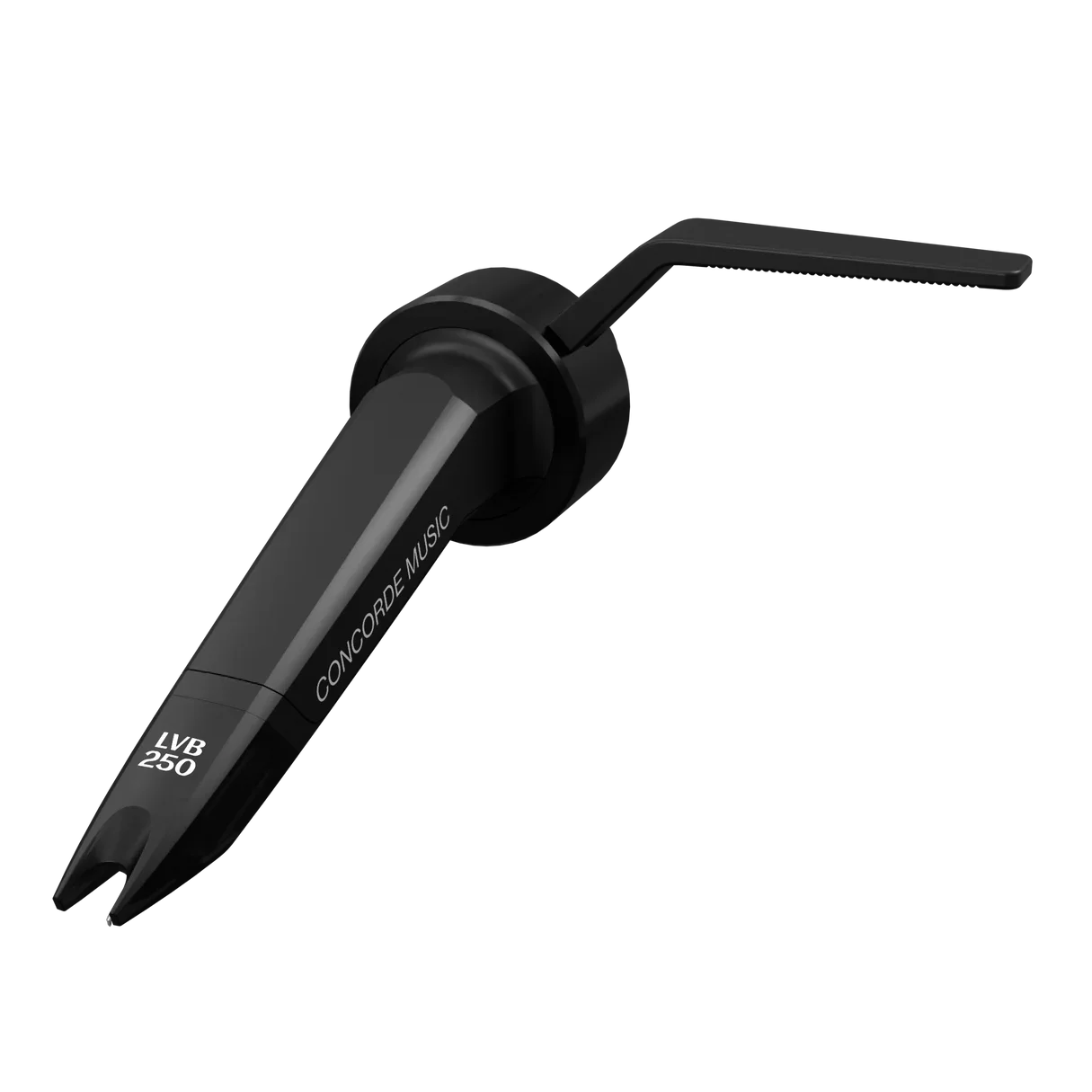

Ortofon - Concorde Music Black LVB 250

Premium Moving Magnet Cartridge

Experience unrivaled accuracy and fidelity with the Concorde Music Black LVB 250. The Concorde Music Black LVB 250 features a Nude Shibata stylus on a Boron cantilever making it the most premium Ortofon Moving Magnet cartridge on the market.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Stylus

The Concorde Music Black LVB 250, featuring a Nude Shibata stylus on an Boron cantilever, offers an upgrade from the Concorde Music Bronze.

The shape of the Shibata distinguish itself by having a narrow and long contact surface. The Shibata is very close to the original cutting stylus which ensures the most accurate reproduction, low distortion and exteded frequency range. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    6mV
  • Channel seperation at 1 kHz
    26 dB
  • Channel seperation at 15 kHz
    20 dB
  • Frequency response 20 Hz - 20 kHz
    +2 / 0 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    15 µm/mN
  • Stylus type
    Shibata diamond on Boron cantilever
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force, recommended
    1.8 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.27 kΩ
  • Cartridge colour
    Black/Black
  • Cartridge weight
    18 g
  • Recommended load resistance
    47 kΩ
  • Internal inductance
    815 mH
  • Recommended load capacitance
    150-300 pF

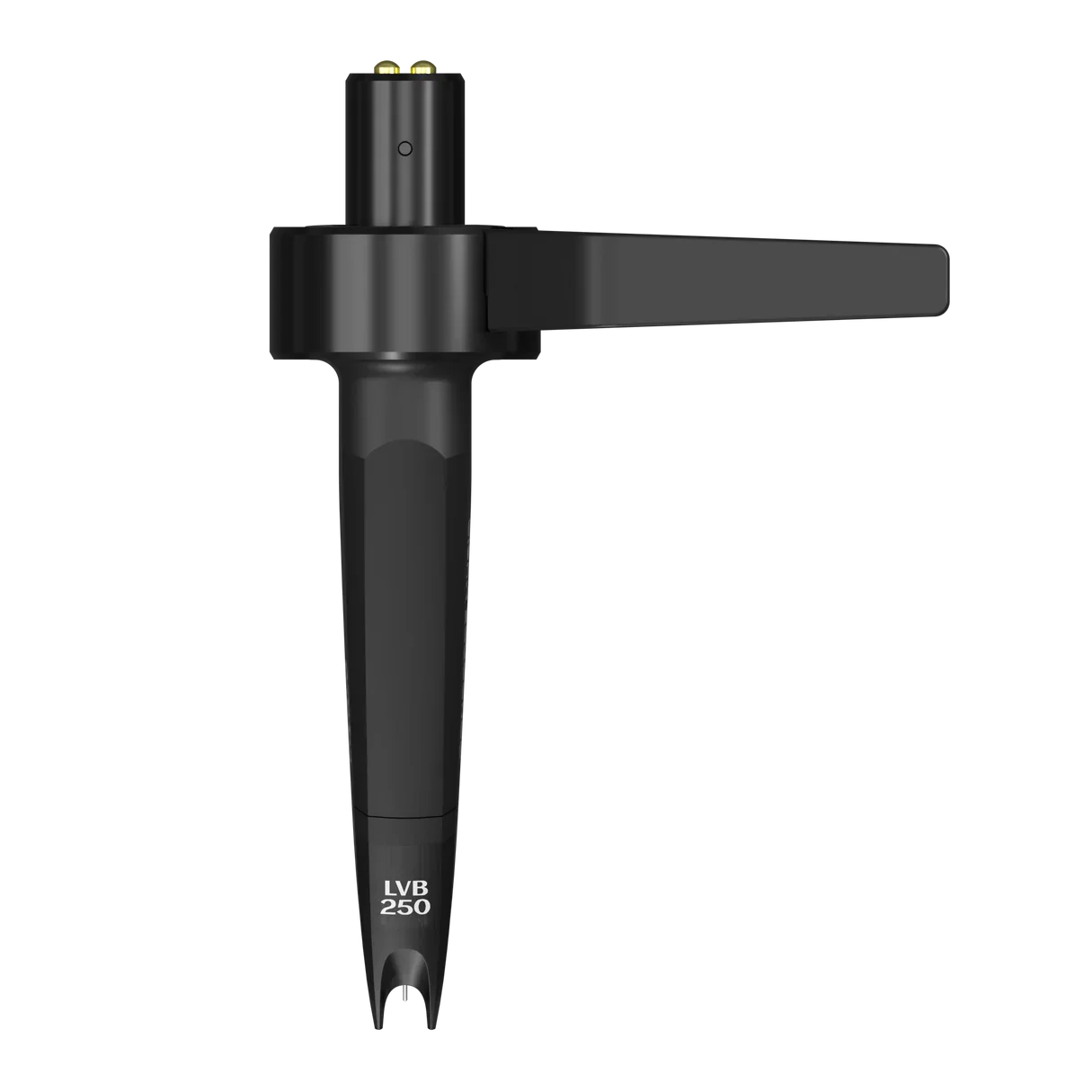

Ortofon - Concorde Music Black LVB 250 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

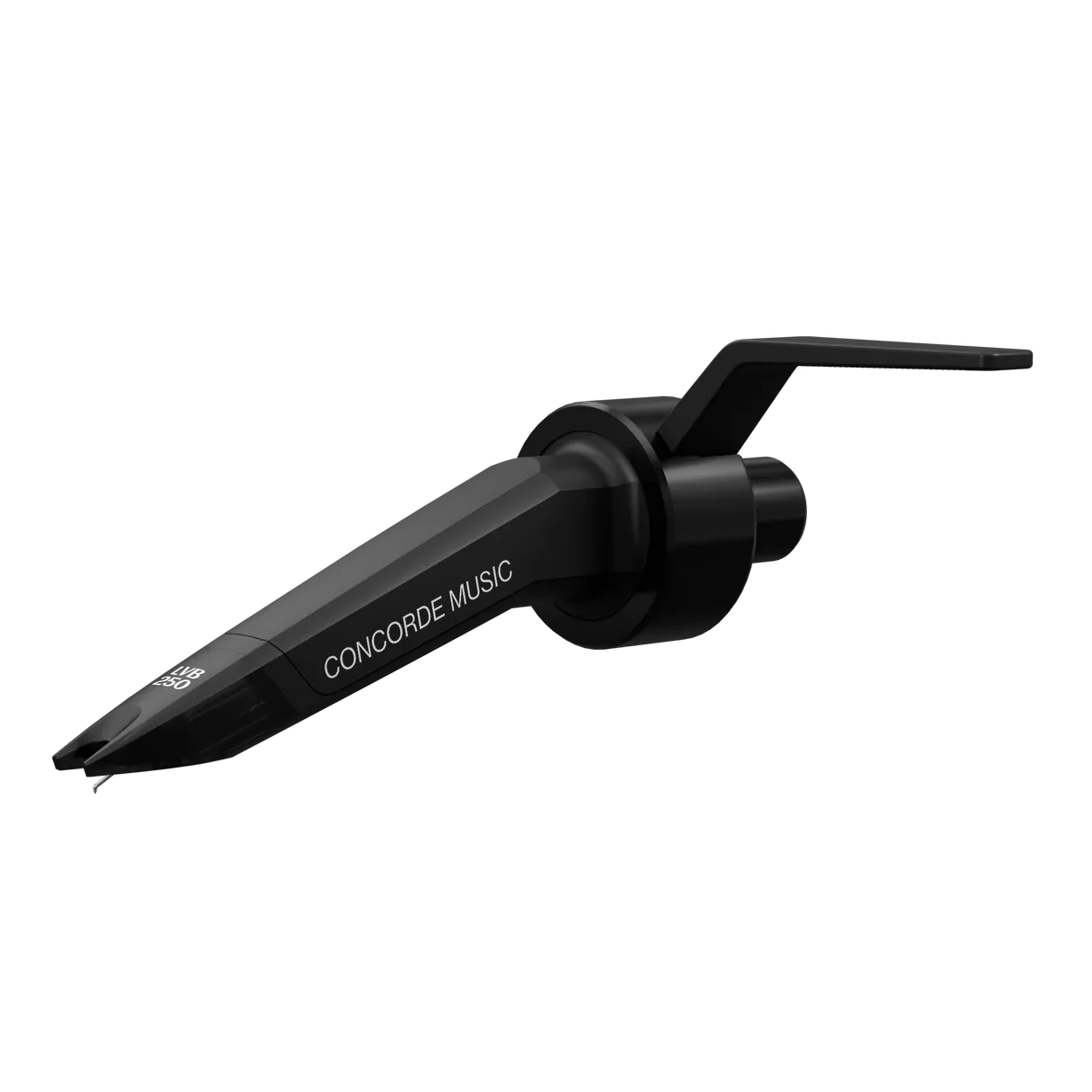

Ortofon - Concorde Music Black LVB 250 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

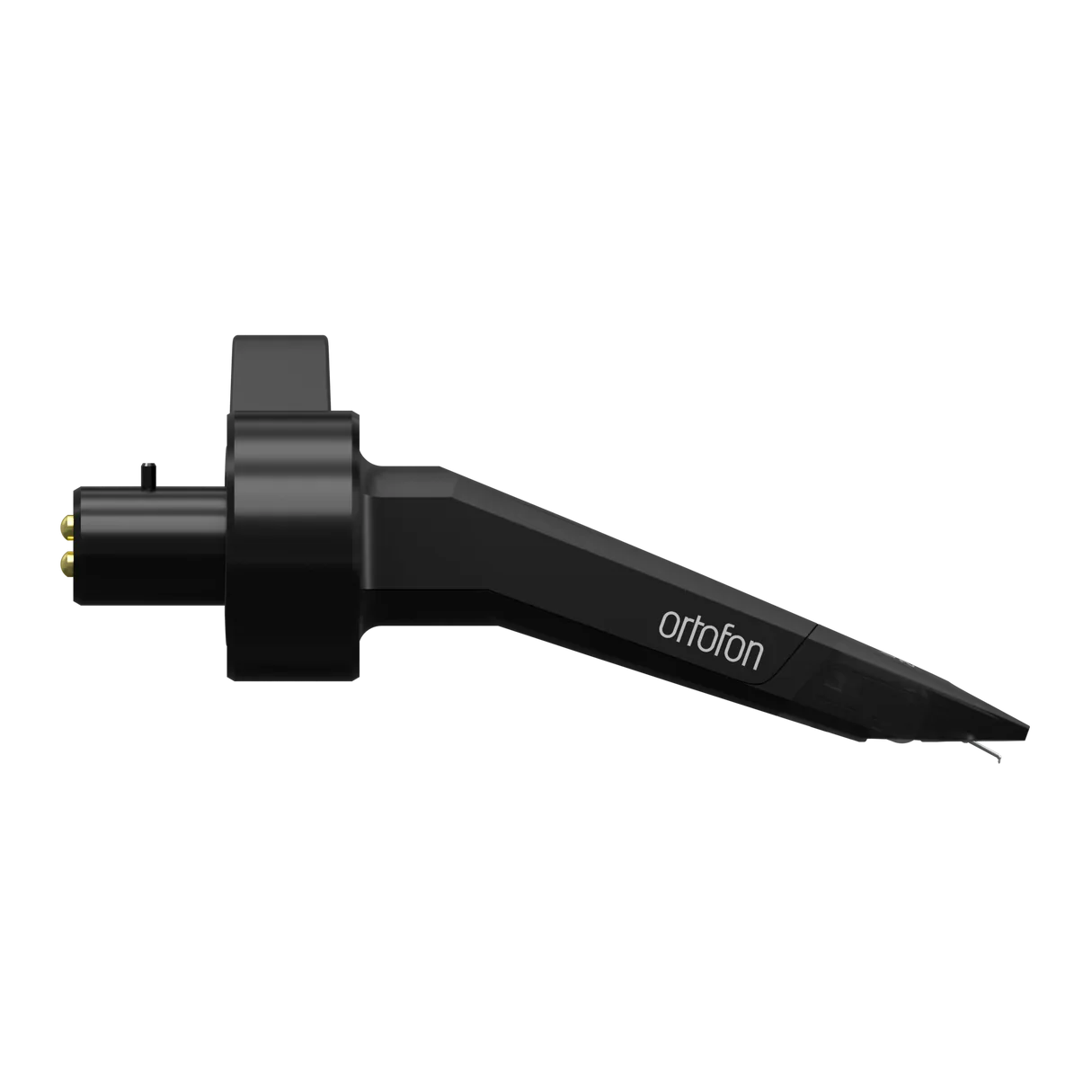

Ortofon - Concorde Music Black LVB 250 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Ortofon - Concorde Music Black LVB 250

Premium Moving Magnet Cartridge

Experience unrivaled accuracy and fidelity with the Concorde Music Black LVB 250. The Concorde Music Black LVB 250 features a Nude Shibata stylus on a Boron cantilever making it the most premium Ortofon Moving Magnet cartridge on the market.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Stylus

The Concorde Music Black LVB 250, featuring a Nude Shibata stylus on an Boron cantilever, offers an upgrade from the Concorde Music Bronze.

The shape of the Shibata distinguish itself by having a narrow and long contact surface. The Shibata is very close to the original cutting stylus which ensures the most accurate reproduction, low distortion and exteded frequency range. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    6mV
  • Channel seperation at 1 kHz
    26 dB
  • Channel seperation at 15 kHz
    20 dB
  • Frequency response 20 Hz - 20 kHz
    +2 / 0 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    15 µm/mN
  • Stylus type
    Shibata diamond on Boron cantilever
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force, recommended
    1.8 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.27 kΩ
  • Cartridge colour
    Black/Black
  • Cartridge weight
    18 g
  • Recommended load resistance
    47 kΩ
  • Internal inductance
    815 mH
  • Recommended load capacitance
    150-300 pF
